Original: $70.00
-65%$70.00
$24.50The Story

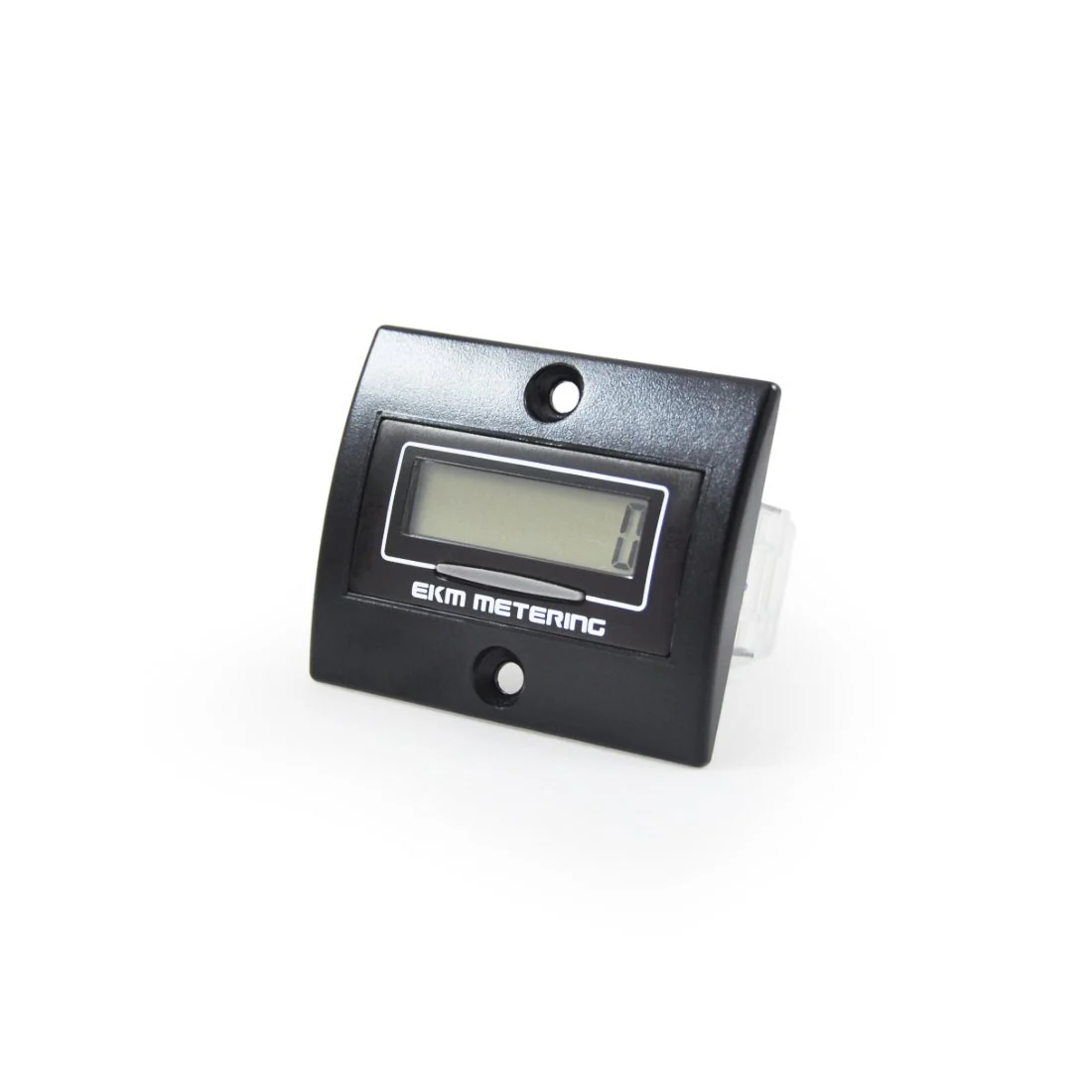

Type: 8 Digit Pulse Counter
Model: PC8-v2
Battery: 10 Year Life
Input Signal: Relay or Switch Contact
Voltage Input: 0–18V
Display: 10mm LCD
Operating Temperature: -20–60ºC
Terminals: Screw Type
Reset: Front Facing Button (disable-able) or Rear Terminal

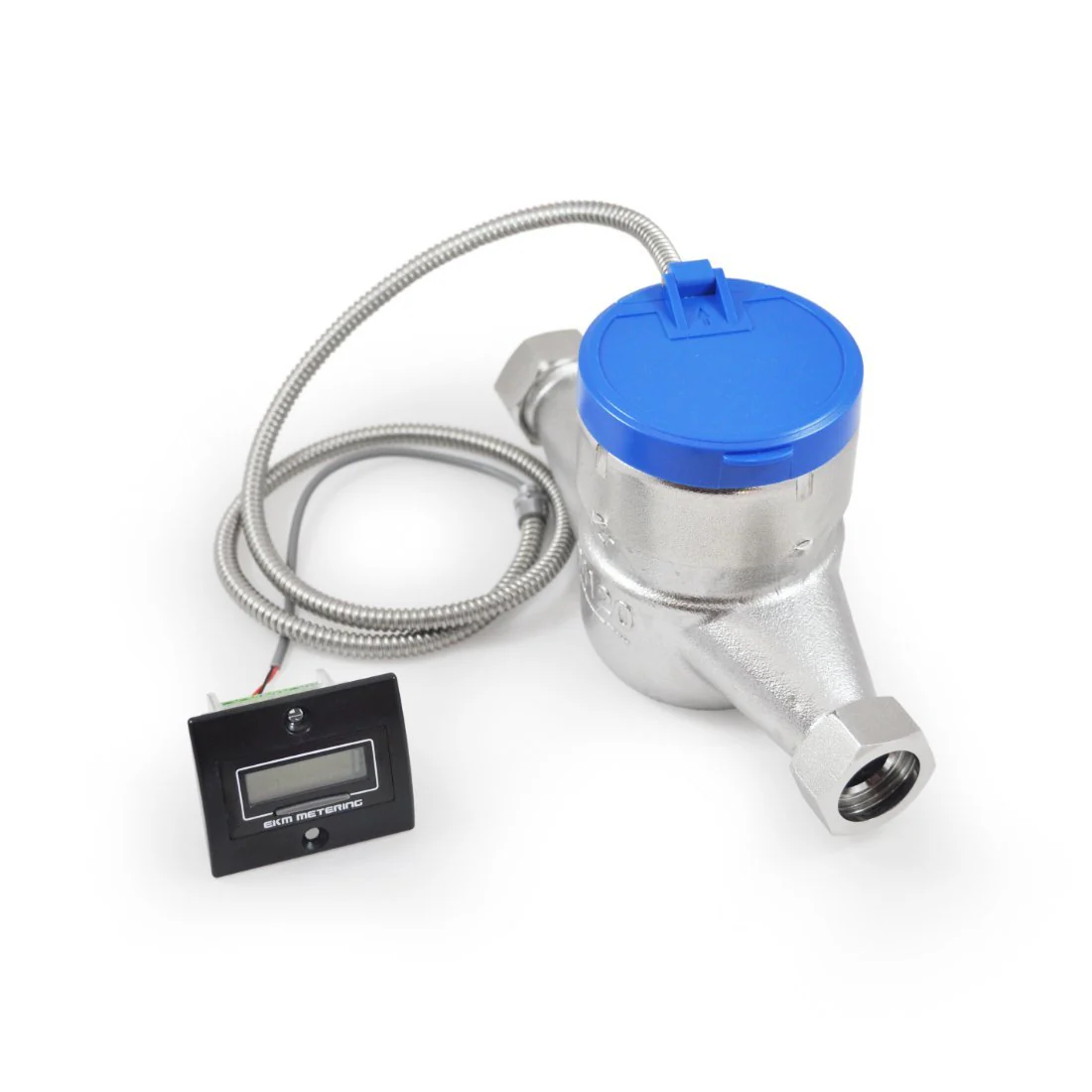

This is a well made 8 Digit Pulse Counter that will count and display pulses. These pulses could be from your Pulse Output Water Meters, or your Pulse Output Gas Meters. The Pulses reflect a usage value. For example, our 3/4 Pulse Output Water Meter pulses once for every 1/10 cubic foot (approx. 0.75 gallon) that passes through it. The pulse counter will count those pulses. As the pulse counter has an 8 digit display, it can count up to 99,999,999 pulses, or in the case of the aforementioned water meter, approximately 75 Million gallons.
The pulse counter has an internal lithium battery that will last up to 10 years.
The total pulse count can manually be reset to zero using the button on the front or via the contacts on the back of the counter. The front button can also be disabled by removing a pin jumper on the side of the counter. Refer the the spec sheet below for instructions.
Connect pulse output water and gas meters to terminals 2 (signal) and 6 (ground) on the back of the 8 Digit Pulse Counter.
The LCD screen can be backlit by supplying 5VDC to terminal 5 on the back of the pulse counter.
This Pulse Counter is not watertight and should be installed in a protected enclosure or environment to prevent damage.
A bezel and gasket are included for mounting and a retention spring clip will hold to pulse counter in place. Bezel screws are not included.
For more information about our products and services, we encourage you to visit our online Knowledge Base, which provides spec sheets, videos, tutorials, FAQs, diagrams, and more.
Here is the spec sheet: 8 Digit LCD Battery Powered Pulse Counter
